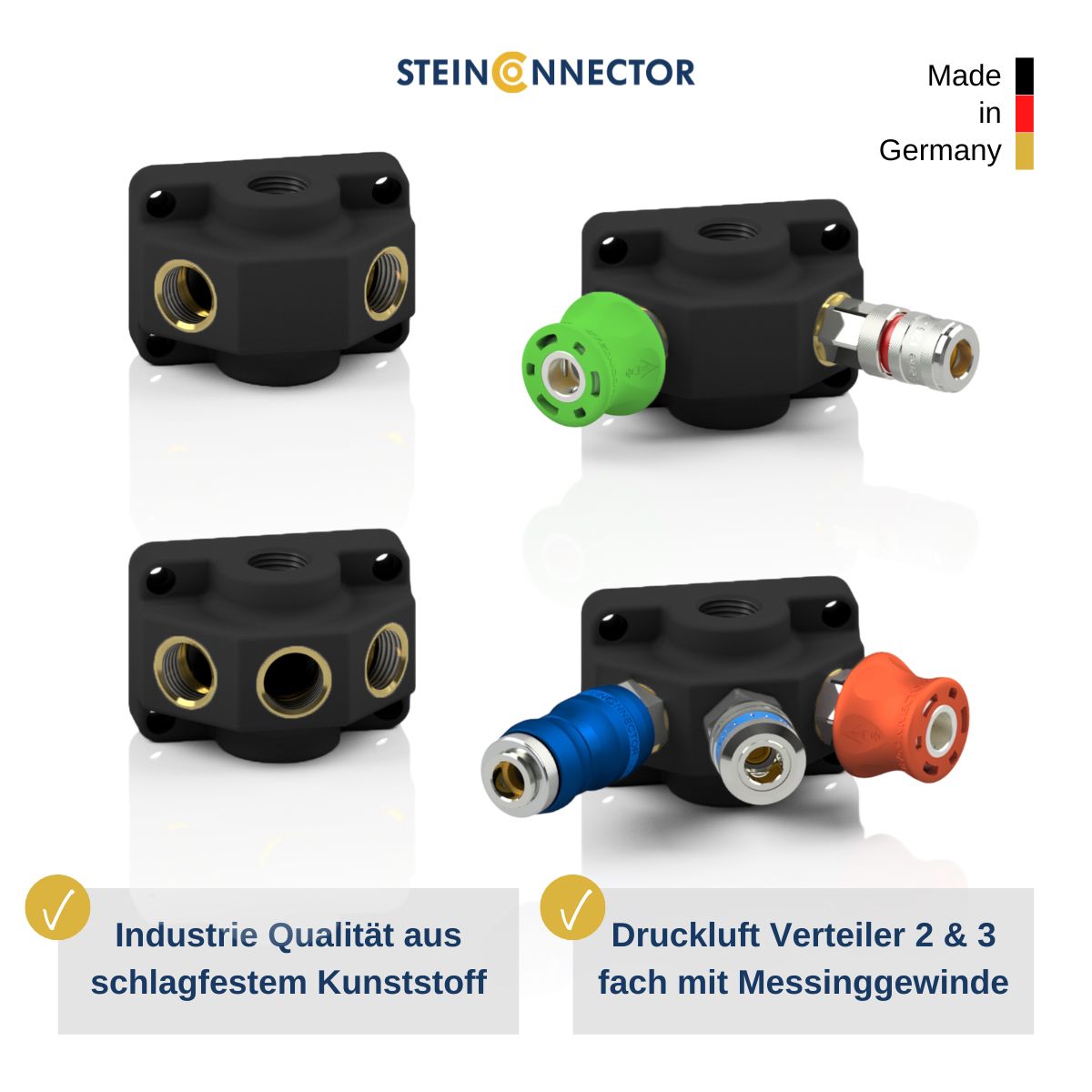

The pneumatic junction box is injection-molded from high-quality plastic and can be mounted as a terminal distributor on walls and ceilings. It can also be installed on portable pneumatic systems or assembly units. It is available with two or three connections for quick-release couplings or other fittings. Optionally, the user can attach the compressed air connection with G1/2'' on the back of the junction box. By using compressed air distributor wall boxes, you enable the disconnection and connection of compressed air lines at an ergonomic height, ensuring organization in your facility.

Advantages of Professional Compressed Air Distributors in Industrial Quality

  • Durable Quality: The compressed air distributor wall boxes are made of high-strength, fiberglass-reinforced plastic and are impact-resistant.
  • Precise Thread Inserts: Our compressed air distributor blocks are manufactured in Germany and feature ½ inch brass threads.
  • 2 & 3-Way Versions: The compressed air distributors are available from stock with two or three threaded inserts—choose what suits your needs.
  • Easy Installation: Our ½ pneumatic distributors have four mounting holes and can be easily mounted on walls or workstations.
  • Made in Germany: The high-quality compressed air distributor boxes are manufactured in Germany in industrial quality and are extremely durable.

Download Technical Data Sheet: Compressed Air Distributor

Do not compromise when it comes to compressed air equipment for your business—choose ½ inch compressed air distributor wall boxes in industrial quality from the start. Our compressed air distributor blocks have been trusted for many years by businesses and workshops across various industries.



Invest in high-quality and durable compressed air distributor boxes, Made in Germany, and equip your business with professional compressed air accessories!





Compressed air tools are used daily across various industries. To ensure optimal workflows, it’s not just about the functionality of compressed air devices— the arrangement and organization of compressed air lines also play a crucial role. Standard coiled hoses often fail to cover the required working radius. That’s why STEINCONNECTOR offers automatic hose reels in industrial quality.

Our compressed air hose reels are available in 8 and 15-meter lengths, can be easily pulled from the hose box with minimal effort, and lock into position at any point. Thanks to the swivel function of the wall bracket, the automatic pneumatic hose box rotates 180° for even greater flexibility when working with compressed air tools. The lockable BiTec venting coupling ensures easy and hassle-free coupling!



Experience the functionality and quality of our compressed air hose reels and make your production workflows faster and more efficient!



The advantages of STEINCONNECTOR compressed air hose reels are highly valued across many industries where the daily use of compressed air devices is essential!

  • Perfect Safe - STEINCONNECTOR hose boxes in 8 and 15-meter lengths come with BiTec safety couplings, allowing you to connect and disconnect your compressed air tools effortlessly and without the "whiplash effect."

  • Easy Handling - Our automatic compressed air hose boxes are 180° rotatable, feature an adjustable positioning ball, and lock into any desired position thanks to the integrated hose brake.

  • Simple Installation - STEINCONNECTOR pneumatic hose reels come with an integrated, detachable 180° wall bracket and can be easily mounted to the wall using the two included mounting anchors.

  • With BiTec Coupling - Our automatic wall hose reels are delivered with an easy-to-use and lockable BiTec venting coupling for seamless operation.

  • Fast Delivery Time - STEINCONNECTOR professional wall hose boxes, suitable for up to 15 bar pressure, are available from stock and can be delivered quickly.

Download Technical Data Sheet: Automatic Hose Reel

Optimize your processes when working with compressed air tools using STEINCONNECTOR automatic compressed air hose reels. The included lockable premium safety coupling provides additional workplace safety!





Where compressed air tools are used, the organization of compressed air lines is an important topic. Whether you use compressed air tools in industry, painting shops, agriculture, production, or workshops, an automatic compressed air hose reel greatly simplifies the work! The robust, closed housing made of high-quality plastic additionally protects the premium compressed air hose from dust and dirt!



Function:

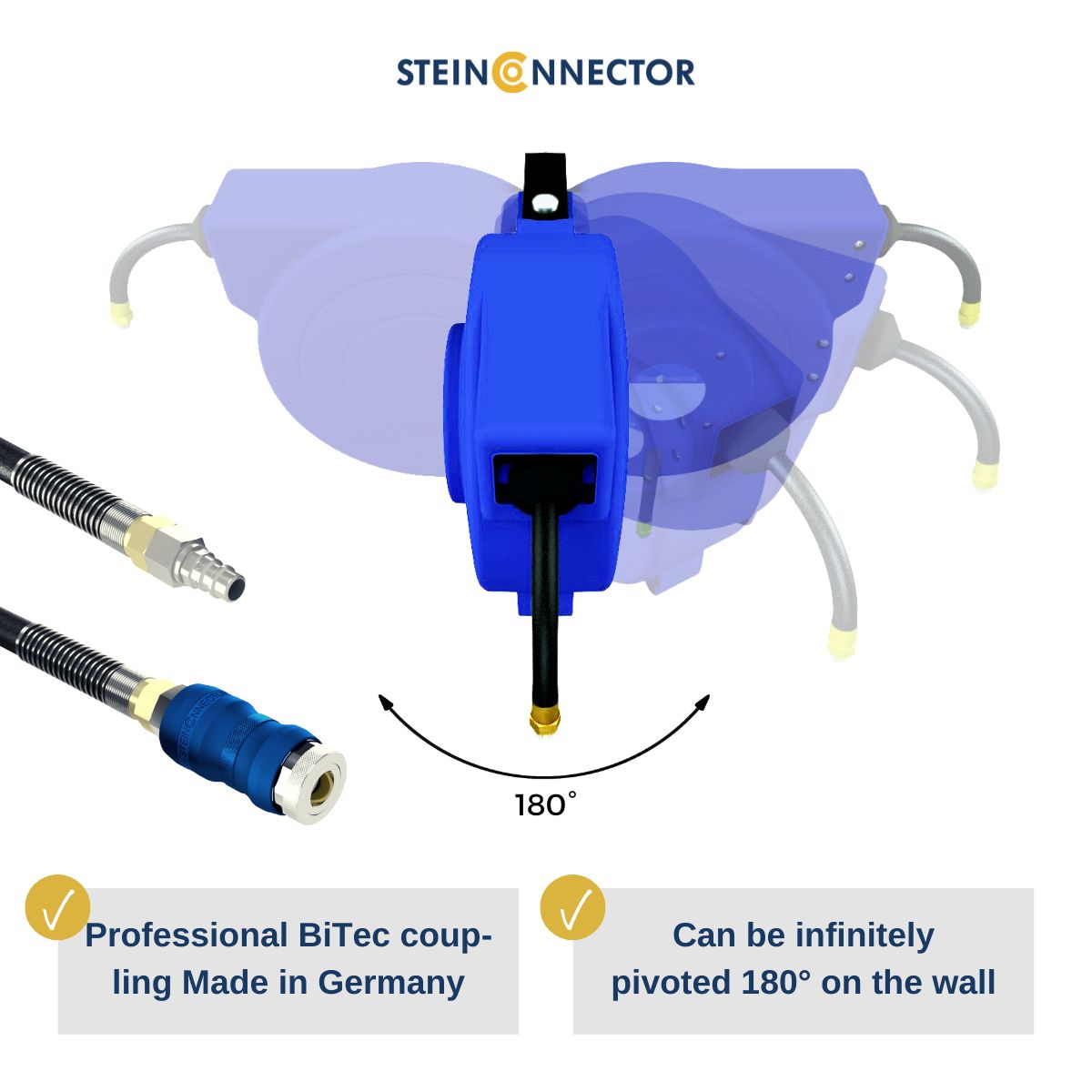

When using the compressed air hose reel, the hose is pulled out and is locked in place multiple times with each rotation by the blocking mechanism. This allows the hose to lock at any desired length, enabling you to start working without any hassle.To achieve the maximum working radius, the compressed air hose reel with wall bracket can swivel 90° in both directions. The 180° swivel function makes working with compressed air tools even more efficient and provides highly flexible usage.After a quick tug on the flexible compressed air hose, the lock is released, and the hose is conveniently and easily retracted back into the pneumatic hose reel by the spring return mechanism. At the end of the air hose, there is a positioning ball, which is adjustable and stops the end of the hose.The advantages of a STEINCONNECTOR automatic hose reel are undeniable. Say goodbye to tedious rolling and kinked air hoses in the future!



Invest in automatic hose reels, optimize workflows when working with compressed air tools, and make your operations more efficient and organized. With STEINCONNECTOR compressed air hose reels, dirty and dusty air hoses are a thing of the past!



Choose STEINCONNECTOR compressed air hose reels from the start and make your work with compressed air tools and equipment safe and efficient!





When connecting quick-connect nipples and compressed air couplings, most products require significant force to push the nipple against the air pressure. Similarly, when disconnecting through the sleeve, the air pressure pushes the nipple out of the coupling. This can lead to the so-called "whiplash effect" or "hose whip" if handled improperly or carelessly. This means the compressed air hose can fly uncontrollably through the air, causing damage and even injuries.

Benefit from our many years of experience as a manufacturer of medical technology quick couplings and safety couplings. At STEINCONNECTOR, you can purchase safety couplings and hose reels from stock and take advantage of fast delivery times. Equip your business with top-quality premium products and don’t compromise on safety and performance.



Invest in STEINCONNECTOR compressed air hose reels with BiTec safety couplings from the start, and make your work with compressed air equipment safe and efficient.



Coupling:

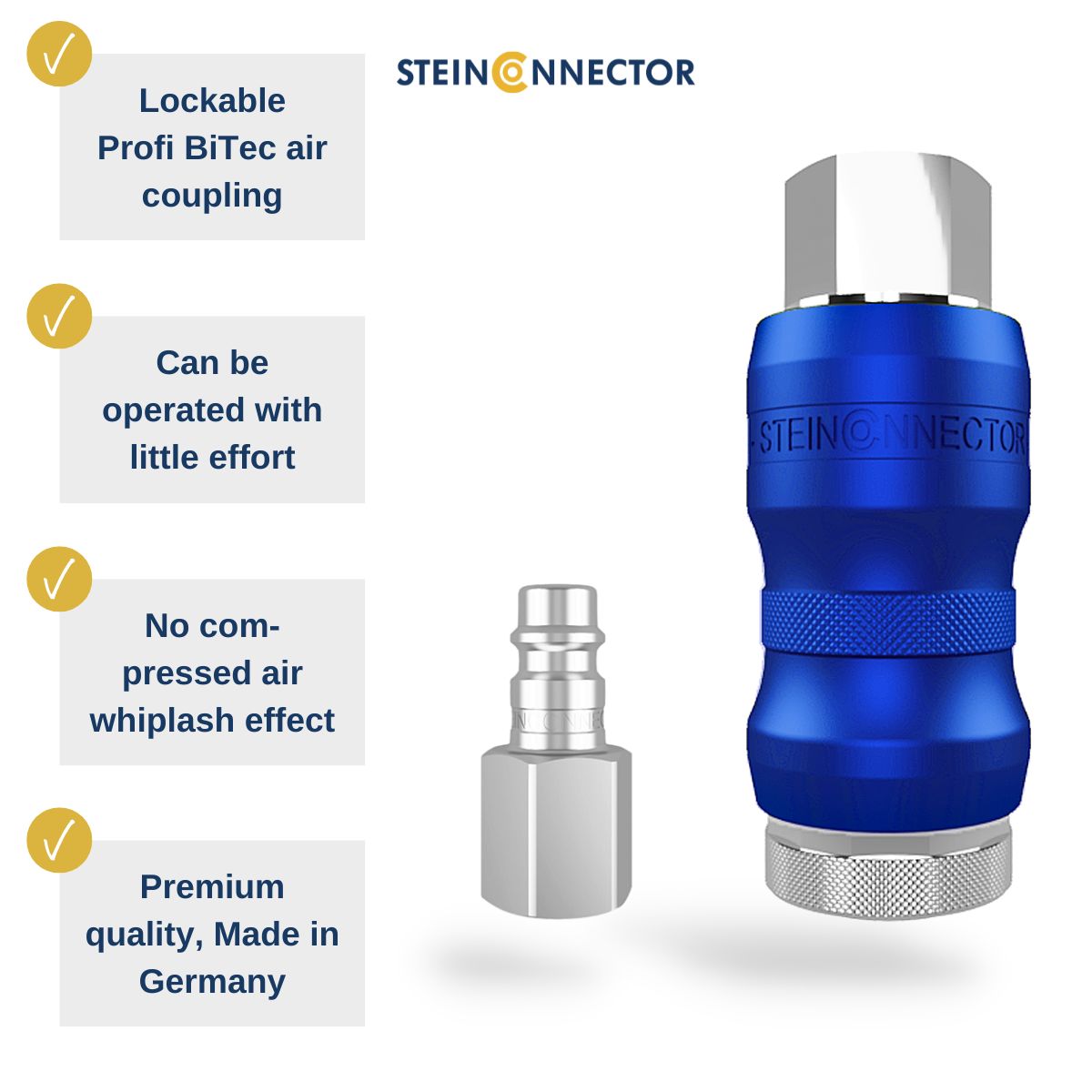

Thanks to the newly developed STEINCONNECTOR BiTec technology, the whiplash effect and dangerous coupling and uncoupling of compressed air lines are a thing of the past. Uncontrolled disconnection or connection of compressed air hoses is effectively prevented! The premium BiTec coupling is a lockable safety compressed air coupling. This means that when connecting the quick-connect nipple with the coupling locked, you are only pressing against the mechanism, not the air pressure. As a result, coupling and uncoupling compressed air lines becomes much easier and even hazard-free! Additionally, after use, you can easily de-pressurize the coupling, helping to prevent air leaks in tools. Every STEINCONNECTOR automatic pneumatic hose reel is delivered with a BiTec coupling and a BiTec quick-connect nipple. By purchasing a STEINCONNECTOR compressed air hose reel, you not only choose more efficient work with compressed air tools but also invest in workplace safety!





When installing compressed air reels, some products can present difficulties. Compressed air hose reels with a non-removable wall bracket are difficult to mount on the wall by just one person. That’s why, when purchasing compressed air hose reels, make sure to choose models with a removable hose reel bracket



Installation:

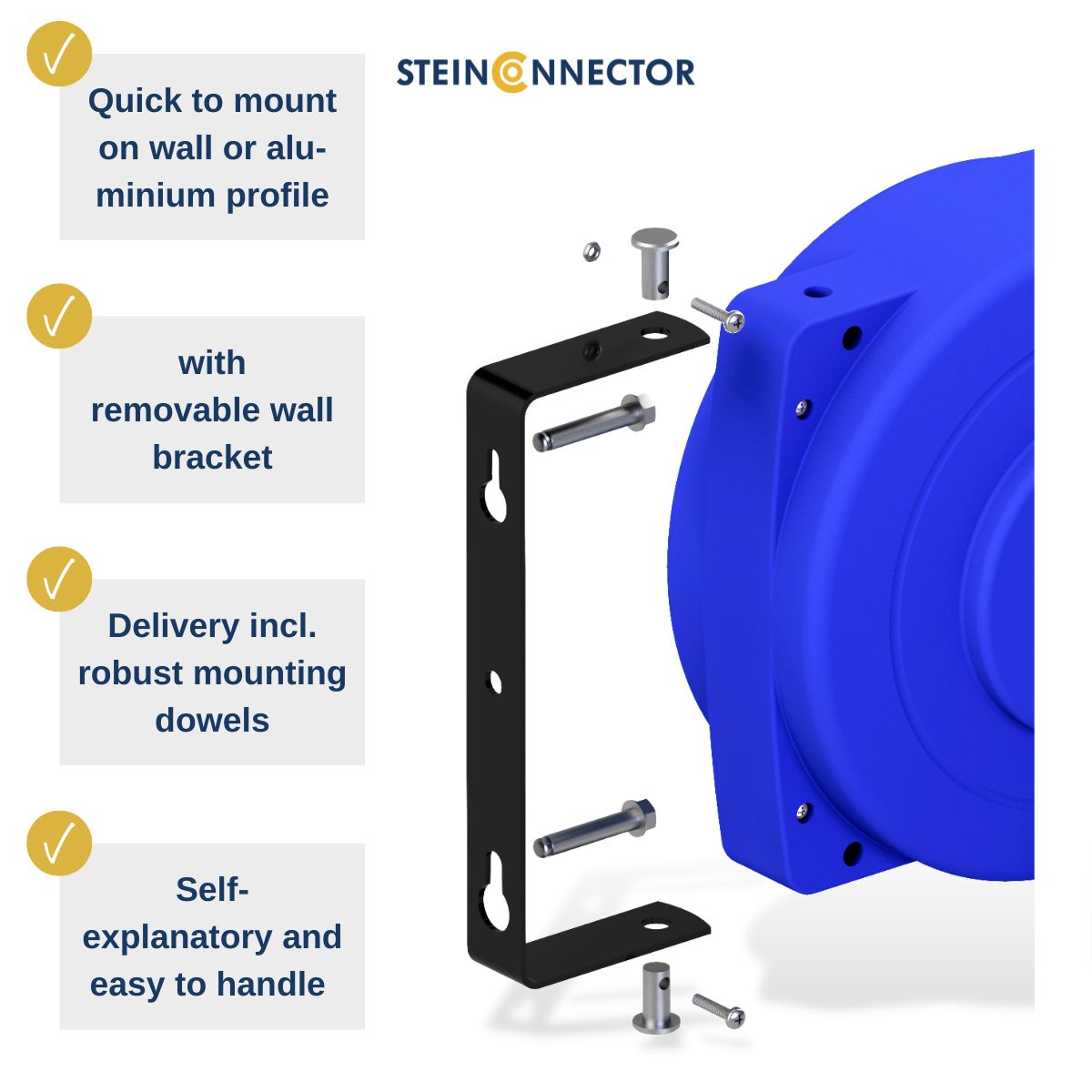

Our automatic hose reels with 8 or 15 meters of compressed air hose come with a removable wall bracket. The pre-assembled air hose reel is separated from the wall bracket by removing two screws. Remove the two screws, nuts, and the two joint bolts, then take the hose reel bracket off the hose box. The lightweight wall bracket, made of powder-coated steel, can now be aligned using a level. Mark the drilling points through the mounting holes, which are spaced 180 mm apart. After drilling, securely attach the hose box bracket to the wall using the two provided mounting dowels. Next, place the pneumatic hose reel back into the wall bracket, insert the joint bolts, and fasten them with the screws and nuts. Connect the hose reel to your compressed air line and comfortably start your work!



The powder-coated wall bracket is secured with just two screws or dowels, making it suitable not only for wall mounting. With the vertically aligned mounting holes spaced 180 mm apart, the hose reel bracket is also perfect for mounting on aluminum profiles and workstations.



Invest in industrial-grade compressed air hose reels, equip your business and workstations with STEINCONNECTOR hose reels, and make your work safer and easier!





The use of STEINCONNECTOR automatic compressed air hose reels makes sense wherever pneumatic tools and equipment are frequently used. Especially when pneumatic tools are used over a larger radius, the use of an automatic hose reel offers significant advantages. However, the compressed air hose reel is not only popular in large industrial operations. It also helps small workshops, craftsmen, and DIY enthusiasts to better organize their work and make processes more efficient.

Rely on our years of experience as a manufacturer of premium compressed air & quick couplings. Make your work with pneumatic lines and tools safer, more efficient, and easier, while also creating order in your work areas. Benefit from the many advantages of STEINCONNECTOR pneumatic hose reels and optimize your workflows!



Invest from the start in STEINCONNECTOR compressed air hose reels, which can be easily and quickly mounted on walls or workbenches with removable wall brackets!





Applications:

Industry: In many assembly halls and production facilities, compressed air tools such as blow guns, impact wrenches, and pneumatic grinders are used daily. Here, STEINCONNECTOR compressed air hose reels make the work easier.

Automotive & Paint Shops: The use of automatic pneumatic reels makes sense here, especially when large working radii are required, such as when changing tires with impact wrenches or painting car body parts with spray guns.

Agriculture: When maintaining and repairing large agricultural machinery with pneumatic wrenches and impact wrenches, the use of air hose reels is particularly recommended.

Carpentry & Joinery: In woodworking for furniture production or prefabricated house manufacturing, pneumatic staplers and nailers are often used over large areas. Here, automatic air hose reels significantly improve efficiency.

Machine & Plant Engineering: Even in the production and assembly of machines and plants, pneumatic automatic reels are a useful tool to reach all work areas with compressed air tools.





Our automatic hose reels are available in various lengths. The standard air hose reel comes with an 8-meter hose. However, for applications where 8 or 10 meters are not sufficient, we also offer the pneumatic hose reel with a 15-meter hose. This provides even more flexibility, allowing you to reach those hard-to-access corners.



If you require additional technical information about our hose reels with BiTec couplings, please contact us. We would be happy to send you our technical data sheet. The automatic air hose reels are also available as 3D models, which can easily be integrated into your 3D design and speed up your CAD planning. Our technical sales team looks forward to your call.



Invest in STEINCONNECTOR automatic reels from the start, optimize your workflows, and enhance workplace safety!

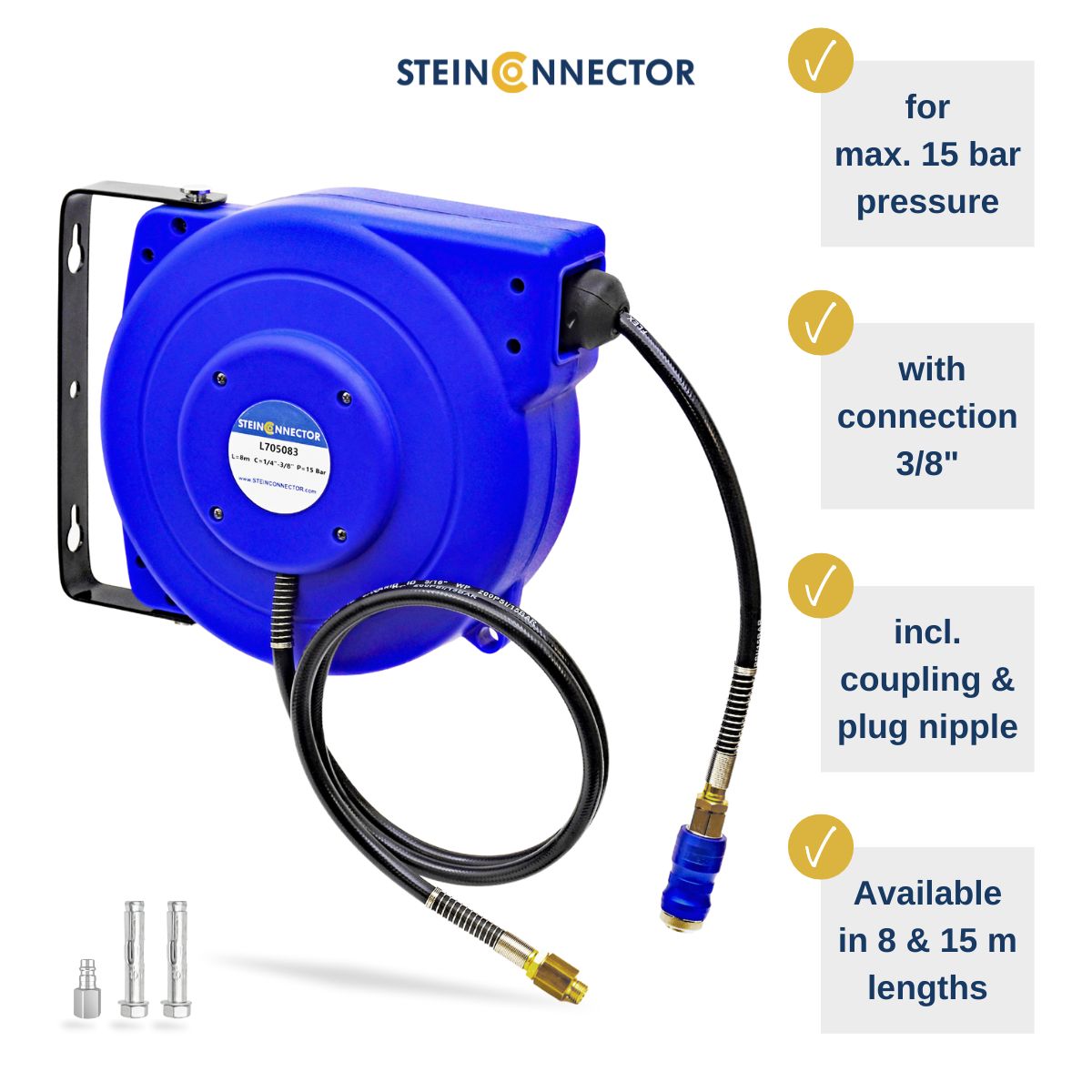

Automatic Pneumatic Hose Reels

Length: (Hose length)

  • 8m, including coupling & plug NUSY1
  • 15m, including coupling & plug NUSY2

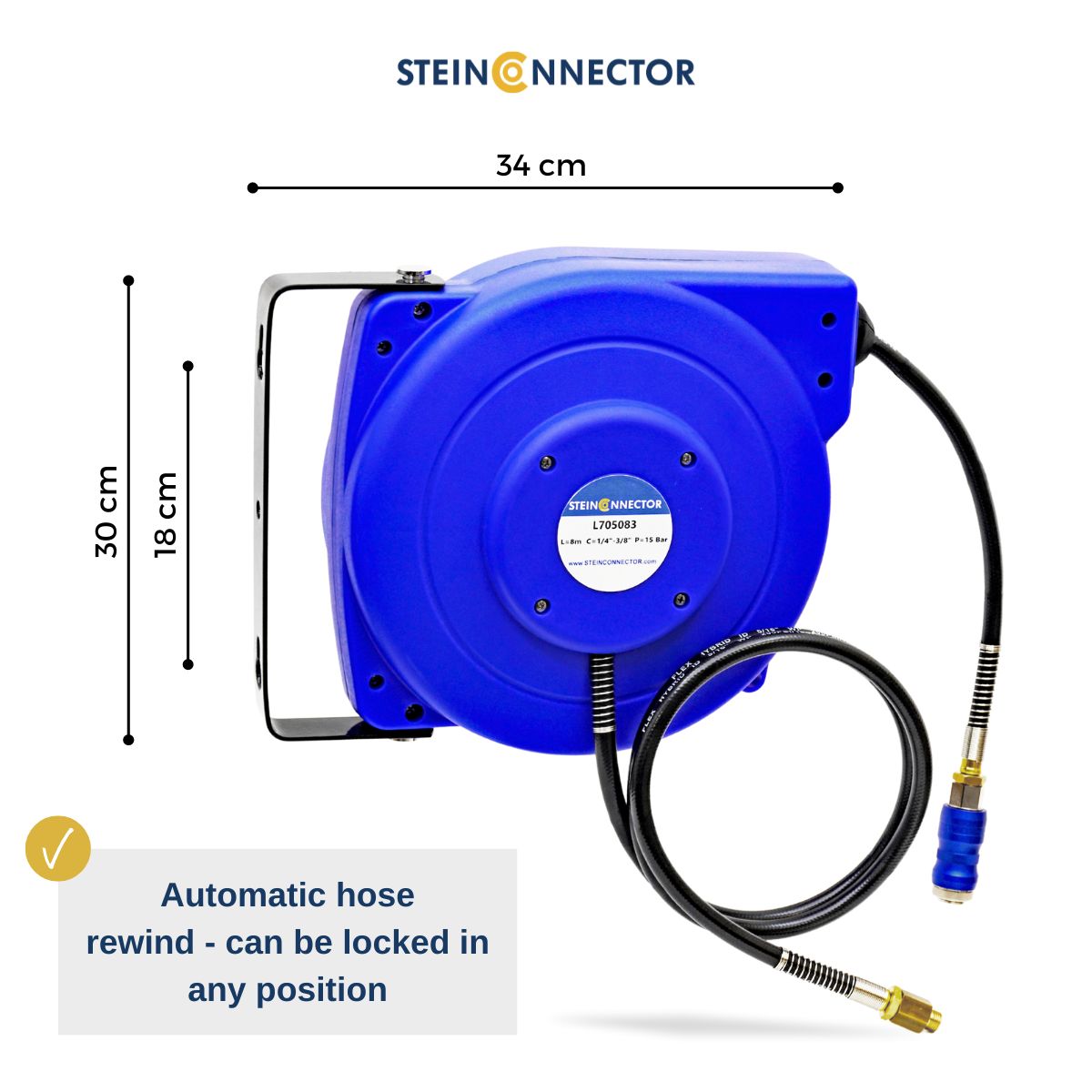

Dimensions (H/W/D): 30 x 34 x 13 cm

Wall Mount: Removable, 180° swivel

Hose Connection: External thread 3/8 inch

Hose Properties: Flexible hose 5/16 inch with kink protection at both ends

Positioning Ball: Continuously adjustable (via screw)

Max. Pressure: 200 PSI / 15 Bar

Housing Color: Blue

Weight: 8m approx. 3.6 kg - 15m approx. 4.0 kg

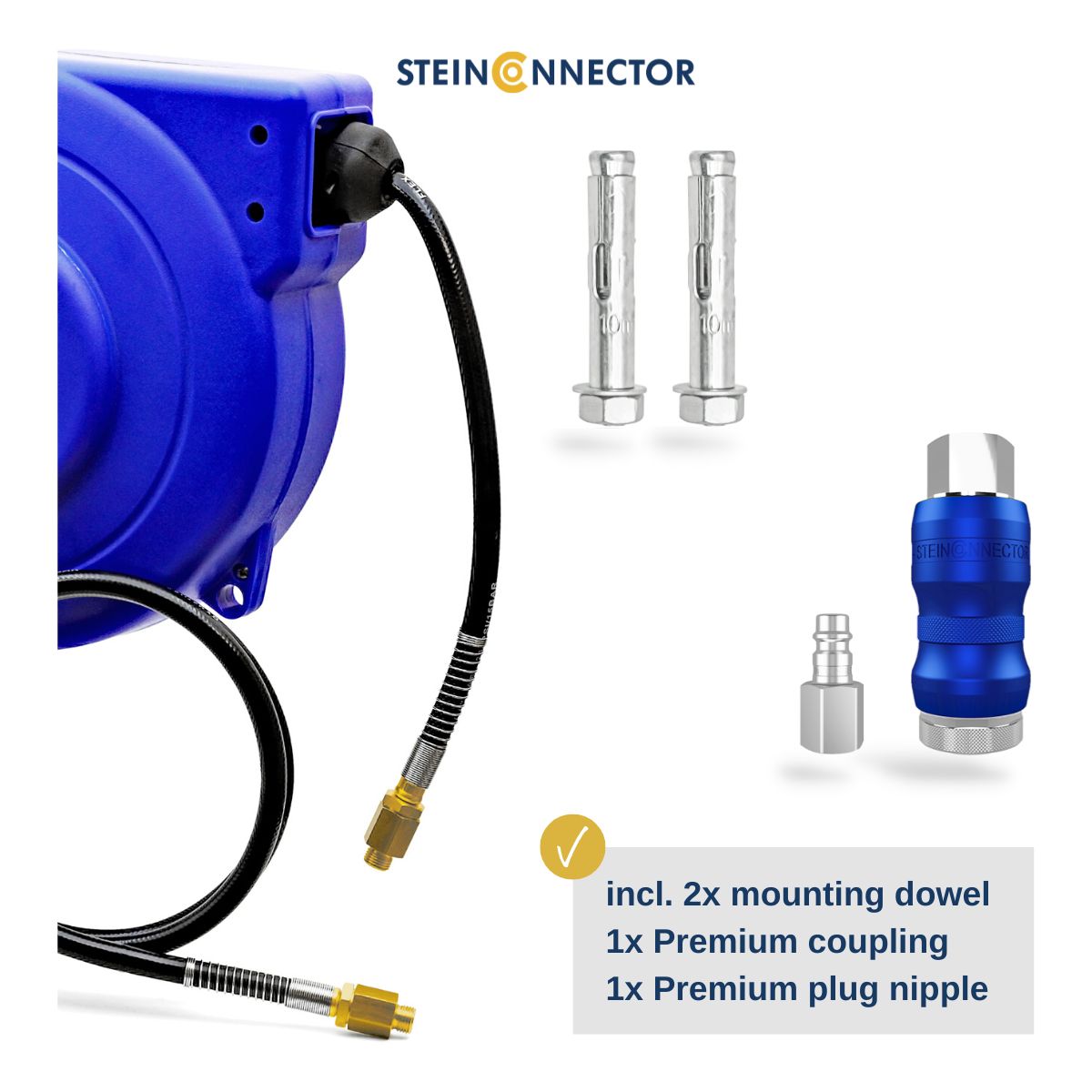

Scope of Delivery: 1 x automatic hose reel, 1 x shut-off air coupling, 1 x plug nipple, 2 x mounting anchors





If you require further technical information about our hose reels with BiTec couplings, please feel free to contact us. We will be happy to send you our technical datasheet. The automatic pneumatic reels are also available as 3D models. These can be easily and quickly integrated into your 3D design, accelerating your CAD planning. Our technical sales team looks forward to your call.



Invest from the start in STEINCONNECTOR automatic reels,
optimize your work processes, and enhance safety in the workplace!
